YCV40WR

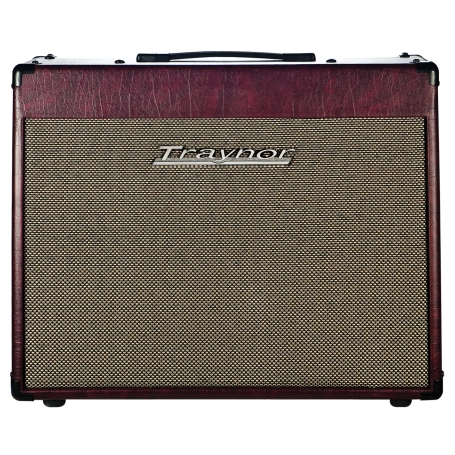

40 Watt All-tube Guitar Combo – Wine Red
Based on our popular YCV40 model, the YCV40WR is a customized hot-rodded version of Traynors best-selling single 12 combo. Featuring a Wine Red leatherette and oatmeal grille, the YCV40WR adds a Celestion Vintage 30 speaker for upgraded tone.
Features
- Auto-matching tube circuit maintains bias balance as tubes age ensuring hum free performance throughout tube life
- DC filaments on preamp tubes eliminate hum
- Fully regulated power supply with tube rectifier emulation
- Long Accutronics spring reverb.
- Classic Celestion 1 x 12-inch Vintage 30 speaker
- Wine red leathertte finish
- All plywood enclosure
- Heavy gauge perforated grille with “oatmeal” cloth covering
- Custom design “Chicken Beak” knobs
- Two-button TFS-2B footswitch is included
- Optional YCX12WR, 1 x 12-inch extension cabinet is available
- Made In Canada
Specifications
| Cabinet Impedance (Ohms) | 8 |
| Power @ min. impedance (Watts) | 40 |
| Minimum Impedance (Ohms) | 4 |
| Speaker Configuration - LF | 12-inch / 40 Watts |
| Preamp Tube | 3x 12AX7WA Dual Triodes |
| Power Amp Tube | 2x 6L6GB Beam Power Tubes |
| Inputs | 2 |
| Channel 1 – Inputs | 1/4-inch phone |
| Channel 1 – Controls | Gain, Volume, Treble, Bass, Middle |
| Channel 1 – Switches | Boost |
| Channel 2 – Inputs | Shares ch 1 input |
| Channel 2 – Controls | Volume, Treble, Bass, Middle |
| Channel 2 – Switches | Channel Select, Brightness |
| Channel Switching | Yes |
| Main Tone Controls | Presence |
| Line Out (type / configuration) | 1/4-inch TRS / Rear (Effects Send) |
| Effects Volume | Yes |
| Effects Loop / Location | Yes / Rear |
| Effects Footswitch / Function | Yes / Channel Select, Boost |
| Internal Reverb / Effects | Spring Reverb |
| LED Indicators | Channel Select, Boost, Power, Standby |
| External speaker output / location | 1/4-inch / Rear |
| Dimensions (DWH, inches) | 9.5 x 23 x 18 |
| Dimensions (DWH, cm) | 24 x 58 x 46 |
| Weight (lbs / kg) | 49.8 / 22.6 |
Specifications subject to change without notice
